 Y-VAMP Corp.
 Select from below.PRODUCTS

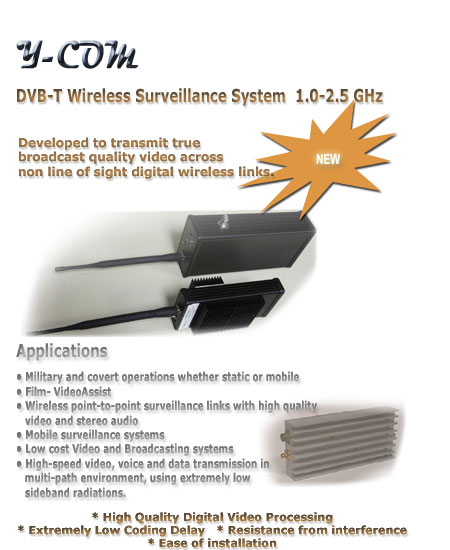

 Y-COM
 Specifications











  MAIN FEATURES

  High Quality Digital Video Processing and MPEG-2 Video Compressionn
  Based on technology used in DVB-T for Interference Free Reception when Mobile


Extremely Low Coding Delay, approximately 40ms end to end latency


  Receiver with or without Diversity reception capability
  Provides superior performance in multi-path environment
  Narrow bandwidth with low side band radiations
  Resistance from interference

  Encryption and scrambling for additional security
  Can be used both indoor and outdoor
  Ease of installation



  RF SPECIFICATIONS

  Output power range: from 10 mW to 2 W
  RF Frequency range: 1.0 GHz to 2.4 GHz
  Bandwidth: 8 MHz
  Modualtion: DVB-T with 2k carriers, COFDM with QPSK and 16 QAM
  Guard Interval: 1/32, 1/16, 1/8 and 1/4








Existing analogue systems suffer from impairments such as video noise and dropouts, loss of colour information and poor image quality when line of sight cannot be maintained, Through adapting standards and technologies used in DVB-T allows law enforcement,surveillance and emergency service communities to now receive the highest quality video images, in real time, direct from personnel buildings and vehicles.
